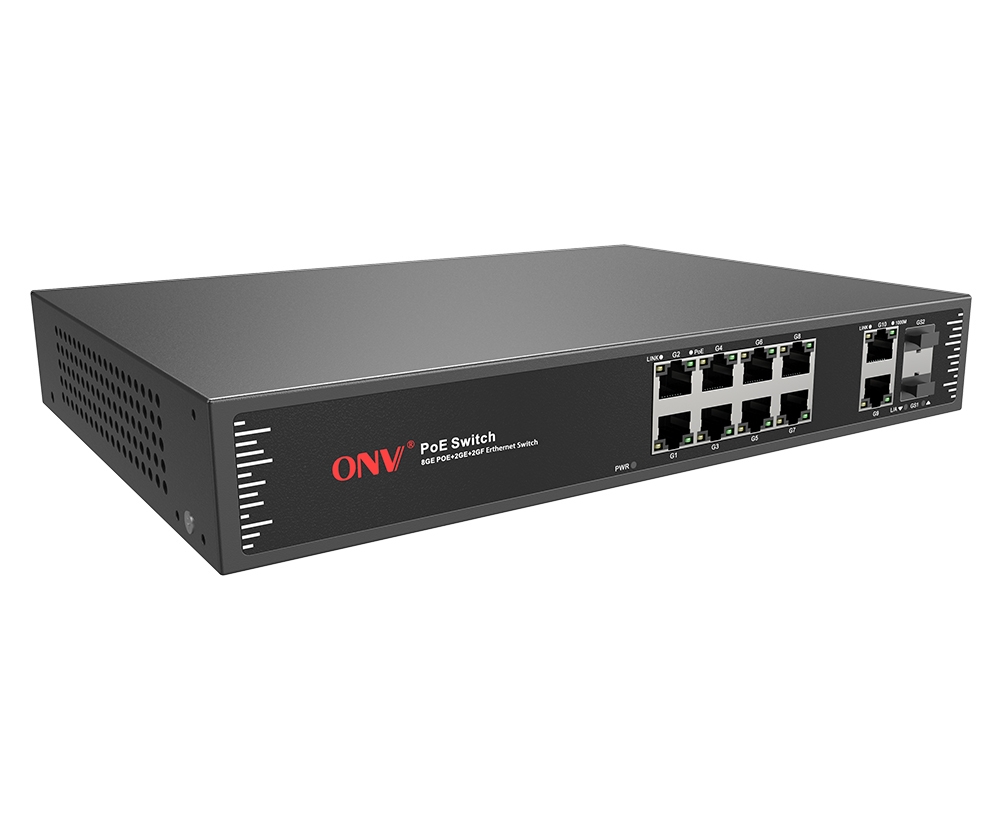

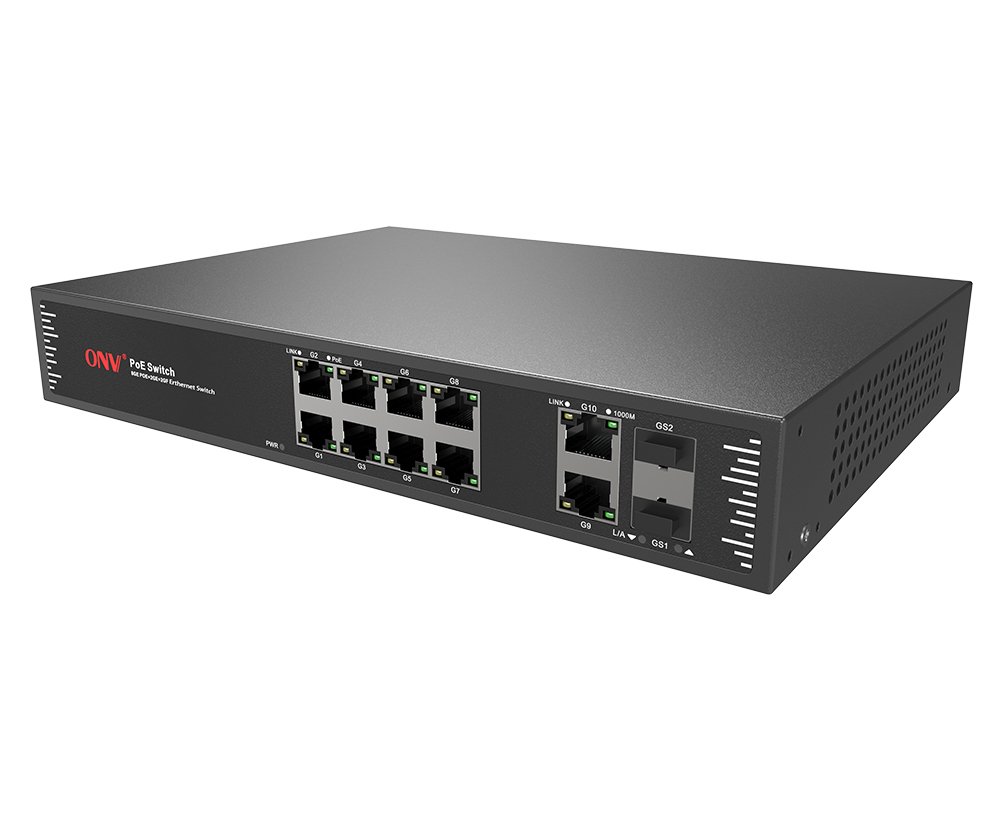

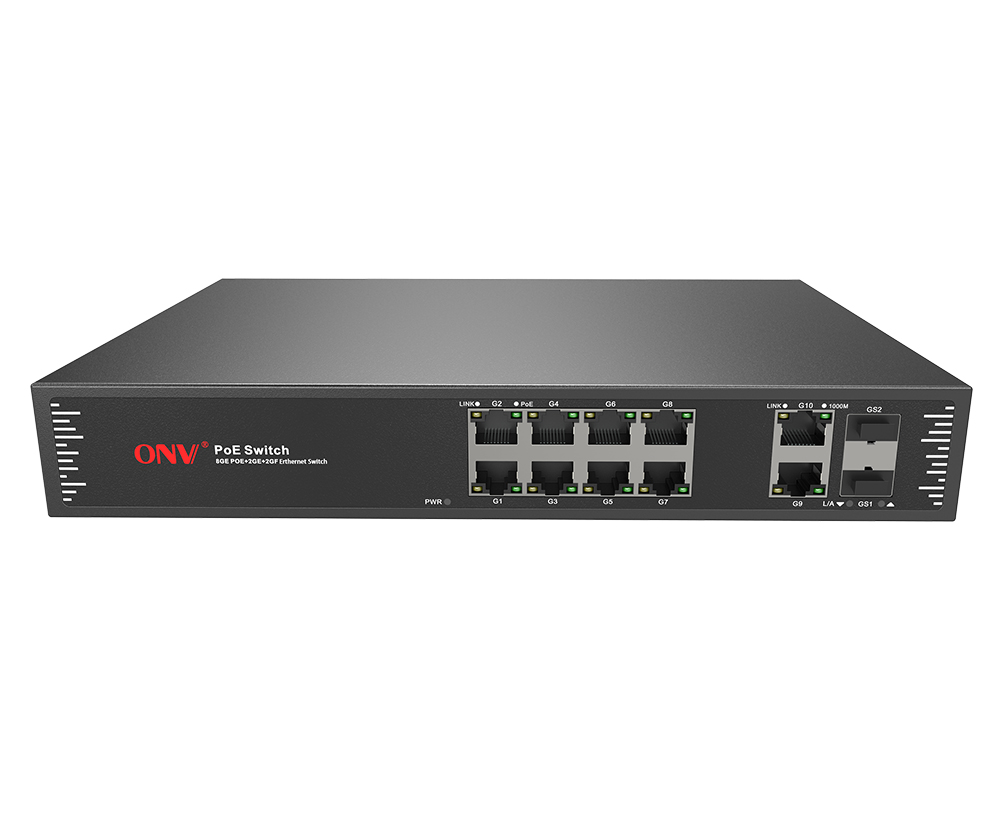

ONV ONV-POE33128PF 12-port Gigabit PoE Switch
₨ 18,500
- Unmanaged PoE switch with 10*10/100/1000M RJ45 ports
- 2*1000M uplink SFP fiber ports
- Port 1-8 can support IEEE 802.3 af/at PoE standard
- built-in 160W power supply
- 1U/19” cabinet installation
The ONV-POE33128PF is a Gigabit PoE switch independently developed by ONV. It has 10*10/100/1000M adaptive RJ45 ports and 2*1000M SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard, and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and identify the power-receiving devices that meet the standard and power them through the network cable. It can power wireless AP, IP camera, IP phone, visual intelligent building intercom, and other PoE terminal devices through the network cable to meet the network environment that requires a high-density PoE power supply. It is suitable for hotels, campuses, parks, scenic spots, supermarkets, factory dormitories, and small and medium-sized enterprises to build economical and efficient networks. Unmanaged mode, plug and play, no configuration, simple and convenient to use.
Specifications
| Model | ONV-POE33128PF | ONV-POE33128PF-at |
| Interface Characteristics | ||
| Fixed Port | 2*1000Base-X uplink SFP fiber ports (Data)
2*10/100/1000Base-T uplink RJ45 ports (Data) 8*10/100/1000Base-T PoE ports (Data /Power) |
|
| Ethernet Port | Port 1-10 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
| Optical Fiber Port | Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) | |
| Optical Cable/ Distance | Multi-mode: 850nm /0-550m, Single-mode: 1310nm /0-40km, 1550nm /0-120km | |
| Chip Parameter | ||
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x | |
| Forwarding Mode | Store and Forward (Full wire speed) | |
| Switching Capacity | 24Gbps (non-blocking) | |
| Forwarding Rate@64byte | 17.86Mpps | |
| MAC | 4K | |
| Buffer Memory | 4M | |
| Jumbo Frame | 9.6K | |
| LED Indicator | Power: PWR (Green), Network: Link/Act (Yellow), PoE: PoE (Green), Fiber port: L/A (Green), Rate: 1000M (Green) | |
| PoE& Power Supply | ||
| PoE Port | Port 1-8 | |
| Power Supply Pin | 1/2(+) 3/6 (-) | |
| Max Power Per Port | 30W, IEEE 802.3 af/at | |
| Total PWR/ Input Voltage | 160W/ (AC100-240V) | 250W/ (AC100-240V) |
| Power Consumption | Standby<8W, Full Load<120W | Standby<10W, Full Load<240W |

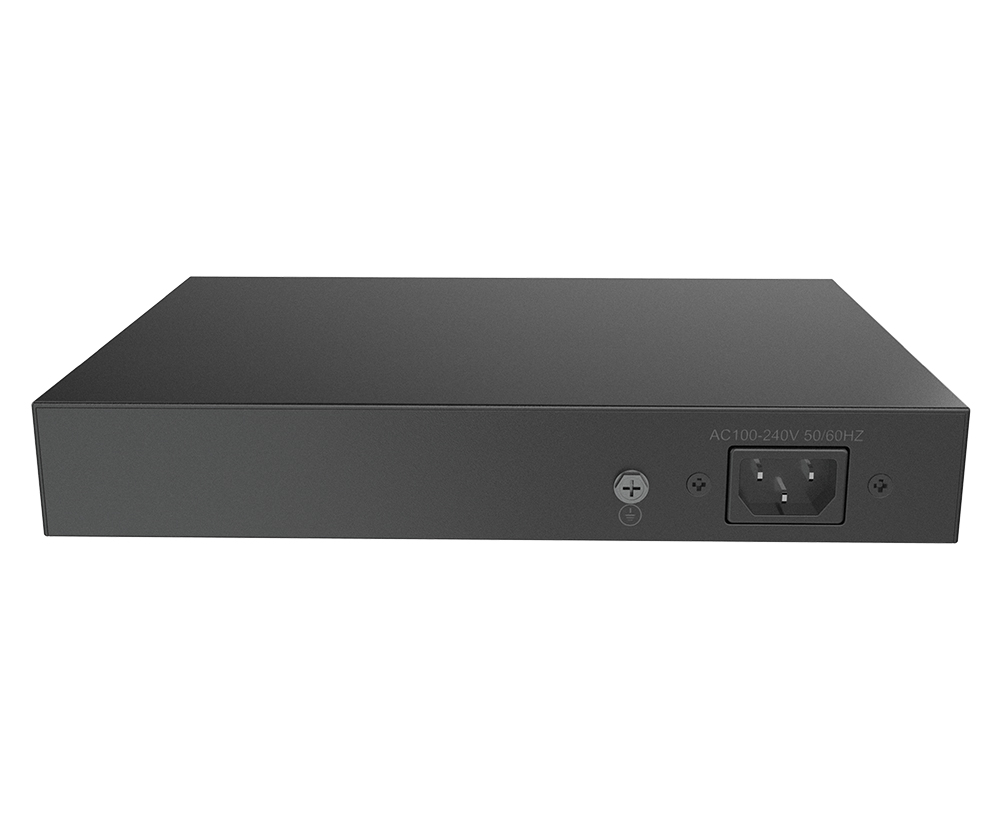

| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 2.3A | Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Physical Parameter | ||
| Operation Temp/ Humidity | -20°C~+55°C, 5%~90% RH non condensing | |
| Storage Temp/ Humidity | -40°C~+75°C, 5%~95% RH non condensing | |
| Dimension (L*W*H) | 270*181*44.5mm | |
| Net /Gross Weight | 1.3kg/ 1.8kg | 1.5kg/ 2.0kg |
| Installation | Desktop, 1U/19” cabinet | |
| Certification& Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS | |
| Warranty | 3 years, lifelong maintenance. | |
